Honel 302/51 and Honel 302/02 - Through Deck Drain Units

Tel: +44 (0) 844 848 9400



The Honel 302/51 and Honel 302/02 through deck drain units are designed to provide ‘Spot Drainage’ points wherever needed or to be used in conjunction with the 325 channel system to provide a wider water collection area. To create a comprehensive subsurface drainage solution, corresponding 325 straight outlets will fit into the Honel 302/51 or Honel 302/02 funnels.

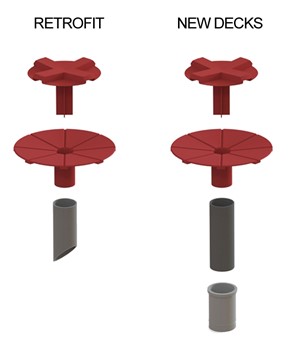

The through deck system is provided in two sizes, 50mm and 32mm diameter. The 32mm Honel 302/02 system is ideal for retrofit applications to overcome ponding or to drain a bridge deck between pre-stressed beams.



Most highways applications favour the 50mm diameter Honel 302/51 system due to its increased discharge capacity.





Honel 302/2 & 302/51 Pipe Component and Accessories

A number of component uPVC bends and fittings are available for use with the 302 through deck system.



For more information please contact t: 0844 848 9400 or e: sales@pdsenviro.com
